| Application Areas | Liquids / Oils / Gases |
| Connection Size | 1/4″ … 4″ |
| Connection Norm | Threaded, Flanged, Hygienic Clamp, PVC Bonding |
| Measuring Range | 10 cc/min … 400 Nm3/h |
| Function | Process Specific Solution |
| Scale Solution According to Fluid | |
| Manual Control | Available (With Control Valve) |

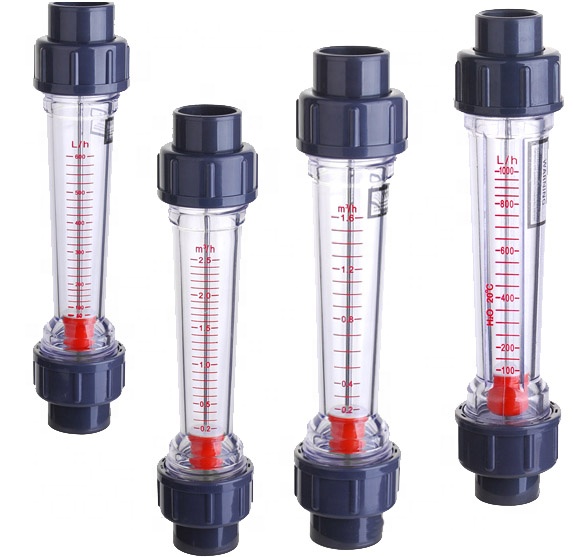

| Measurement Method | Variable Area |
| Analog Output Signal | 4…20 mA |
| Digital Output Signal | SPST Contact |
| Measuring Tubes | Acrylic Plastic, Glass |
| Contact Voltage | 24 VDC/230 VAC |
| Housing | Metal Enclosure ( Opt. ) |
| Approval | Non-Explosive Sites |
| Sensitivity | % 2 Std. ( %1 Opt. ) |
| Display Options | Black Scale ( Std. ) OpsRed Scale / Blue Scale |
| Temperature | -20 … +60 °C ( Opt.125 °C ) |
| Pressure | Plastic Tube Max.10 bar , Glass Tube 6 bar / 16 bar (Opt.) |
| Quality Certificates | IS09001 / CE |
