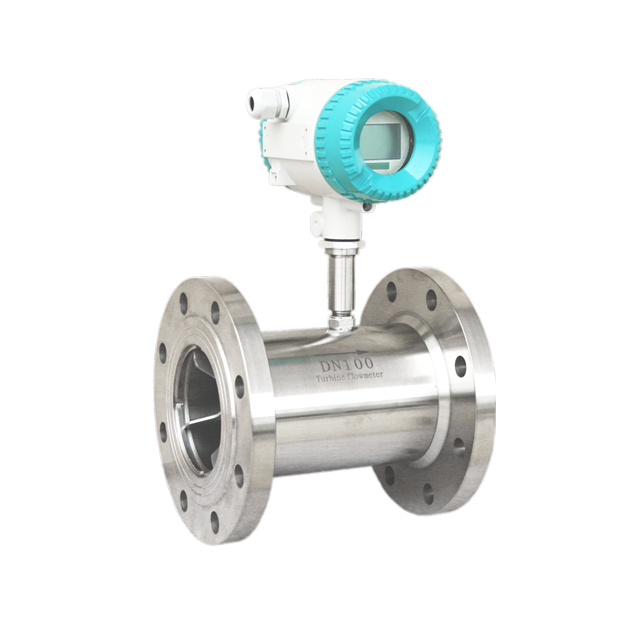

Turbine Flowmeter

Application Area	Non-Viscous, Clean Liquids
Connection Size	DN4 … DN200
Connection Norm	Threaded, Flanged, Hygienic Clamp
Measuring Range	1 … 10 m/s
Wet Portions	Body AISI 304 SS
	Rotor CD4MTU Stainless Steel
	Rotor Support Shaft AISI 316 SS
	Rotor Shaft Tungsten Karpid
Connection Portions	Stainless Steel
Preservation/Housing	Epoxy Coated Aluminum
Analog Output Signal	4…20 mA
Digital Output Signal	Puls
Communication Protocol	HART,RS-485 Modbus
Supply Voltage	24 VDC
Protection Class	IP65/IP67
Approval	Ex d II C T6
Precision	% 1 Std. ( %0,5 .. %0,2 Opt.)
Indicator Options	Compact , Remote ( Seperate )
Indicator Parameters	Instant and Total Flow Amount
Temperature	-20 … +120 °C ( Opt.160 °C )
Pressure	Flanged 16 bar / Threaded 63 Bar / Ops.400 bar
Quality Certificates	IS09001 / CE
