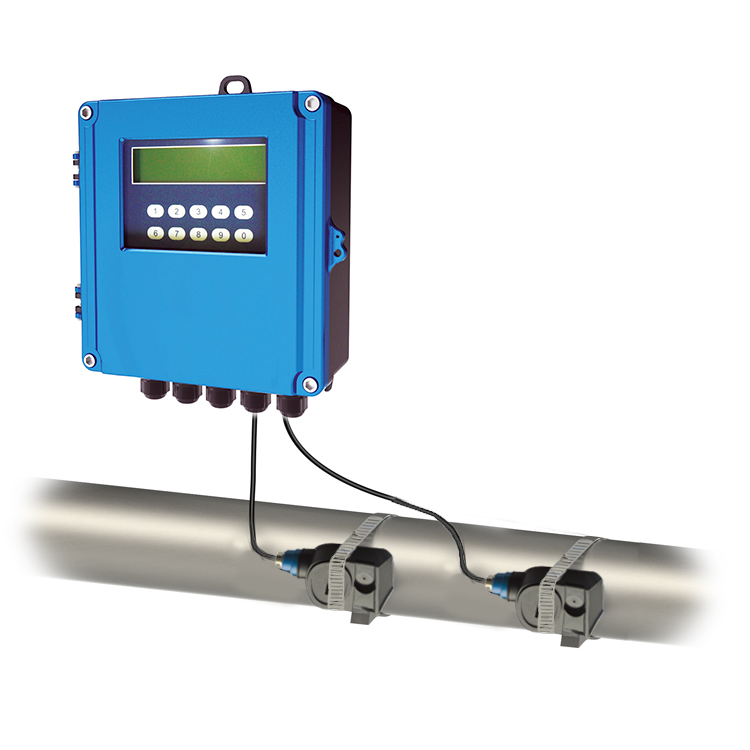

Ultrasonic Flowmeter

Application Area	Liquids, Gases
Function	Stationary and Portable (Portable)
Application Area	Penstock Pipes, All Metal and Plastic Pipes
Temperature	-20 … +90 °C Std. / Opt.160 °C
Building	Clamp On ( 2 / 4 / 8 Transducer )
Connection Size	DN15 … DN7000
Connection Norm	Clamp Mounting
Measuring Range	0,3 … 20 m/sn
Connection Portions	Stainless steel, Carbon Steel
Accessory	Clamp, Tape Measure, Liquid Gel, Carry Case
Accessory	Ops. Pipe Thickness Gauge
Analog Output Signal	4…20 mA
Dijital Output Signal	Puls/Frequency
Communication Protocol	HART,RS232, RS-485 , Modbus, Profibus Pa ,Foundation Fieldbus
Supply Voltage	24 VDC , 230 VAC , With Battery
Protection Class	IP65/IP68
Approval	Non-Explosive Fields
Precision	% 1 Std. ( %0,5 )
Display Options	Handheld, Remote
Display Parameters	Instant and Total Flow Amount, Speed, Signal Quality
Alarm Parameters	Low / High Flow Rate, Empty Pipe Alarm
Quality Certificates	IS09001 / CE
